Missouri University of Science & Technology, Schrenk Hall

Missouri University of Science & Technology, Schrenk Hall

Our science and technology team reprogrammed the full renovation of Schrenk ll West and a new biological science building to replace the existing Shrenk Hall East due to significant growth in their laboratory space needs. This work was broken into two phases—the renovation of the upper two floors of existing Schrenk Hall West (Phase 2) and the remaining renovation of the lower two floors and the new biological sciences building (Phase 3). Phase 2, the renovation of 40,000 square feet on the two floors, was completed in 2017.

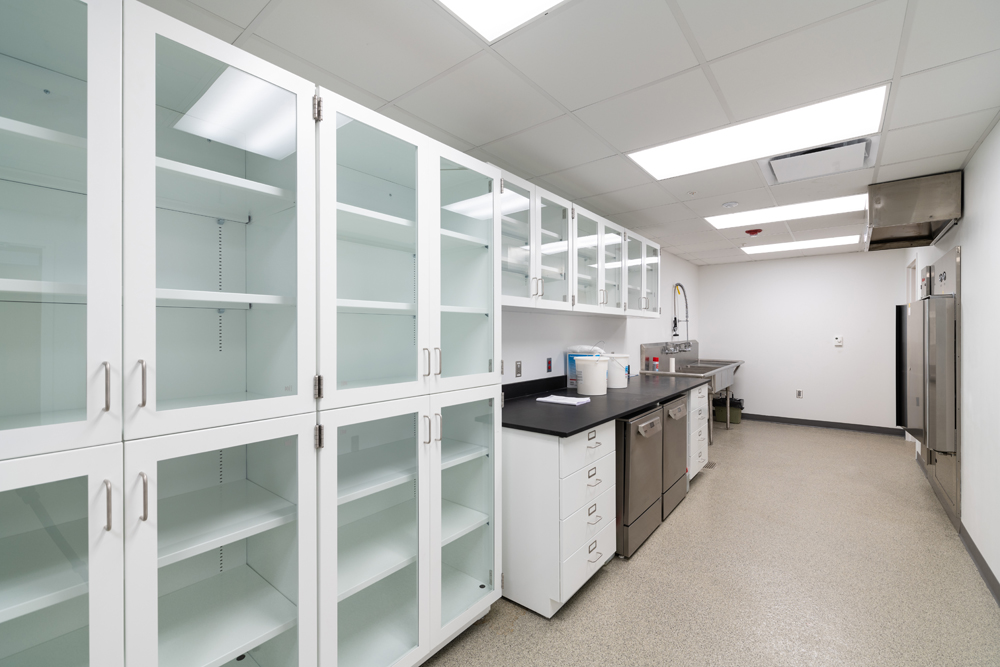

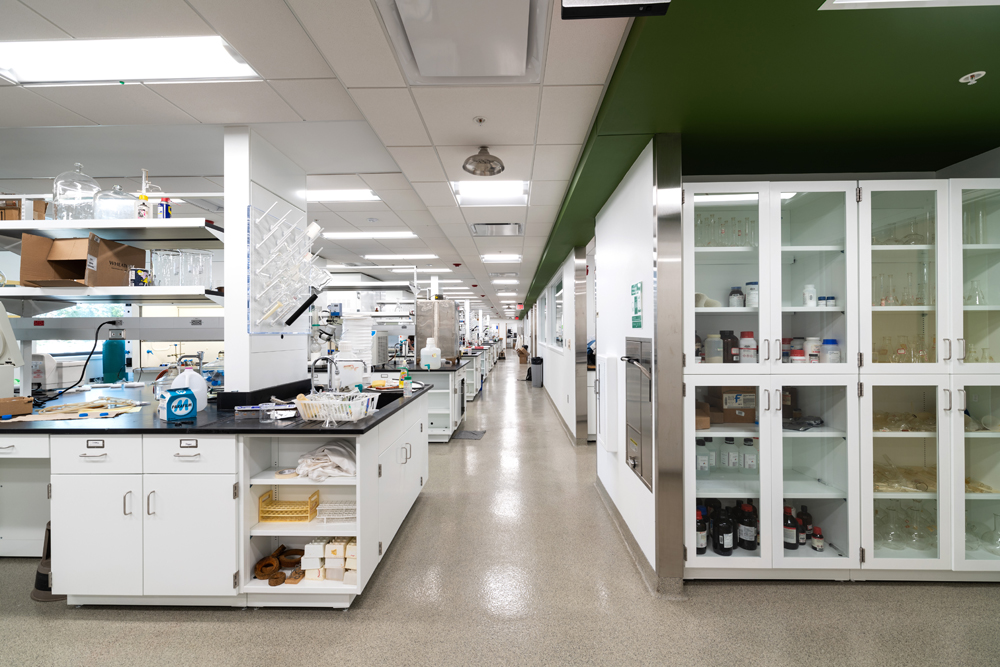

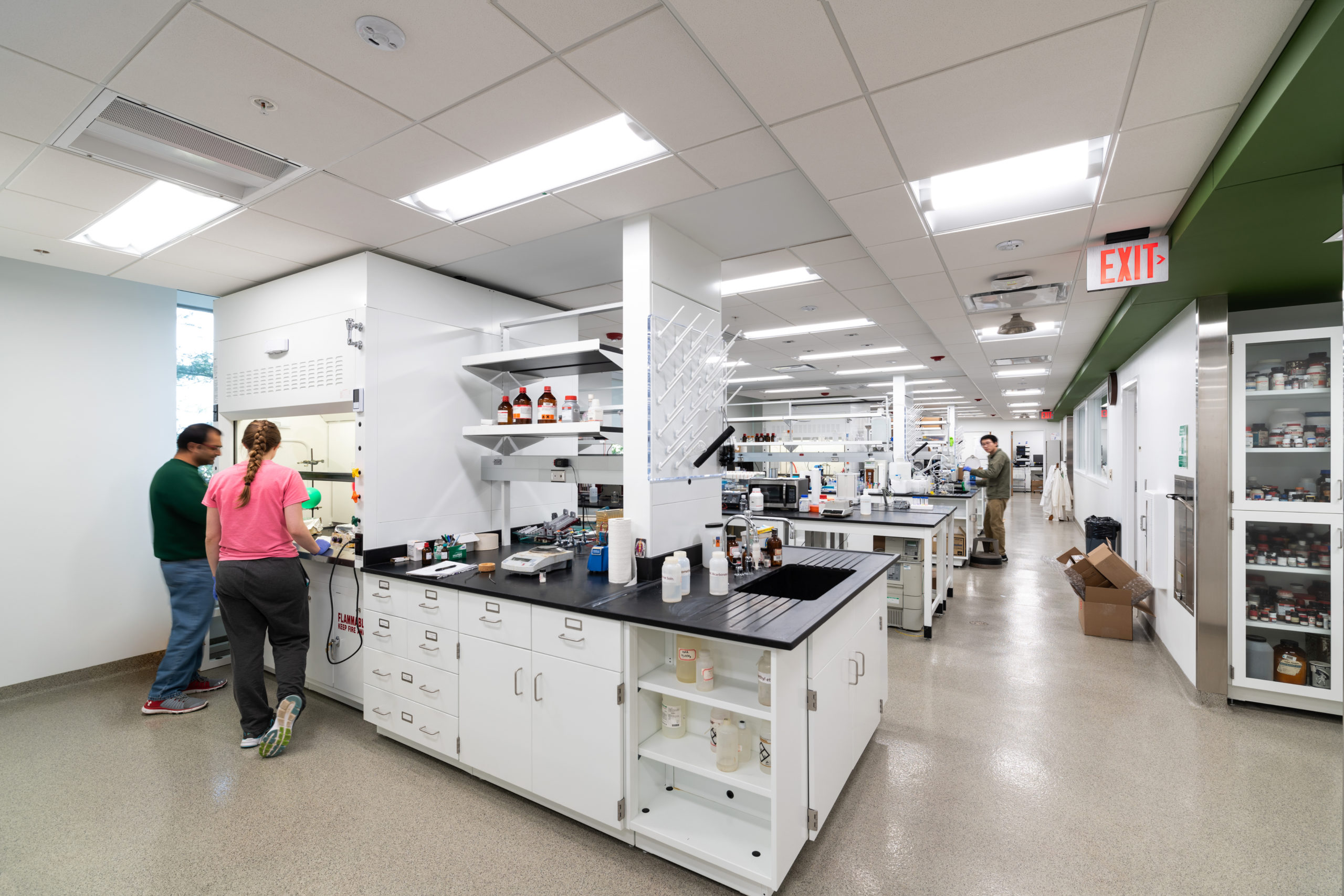

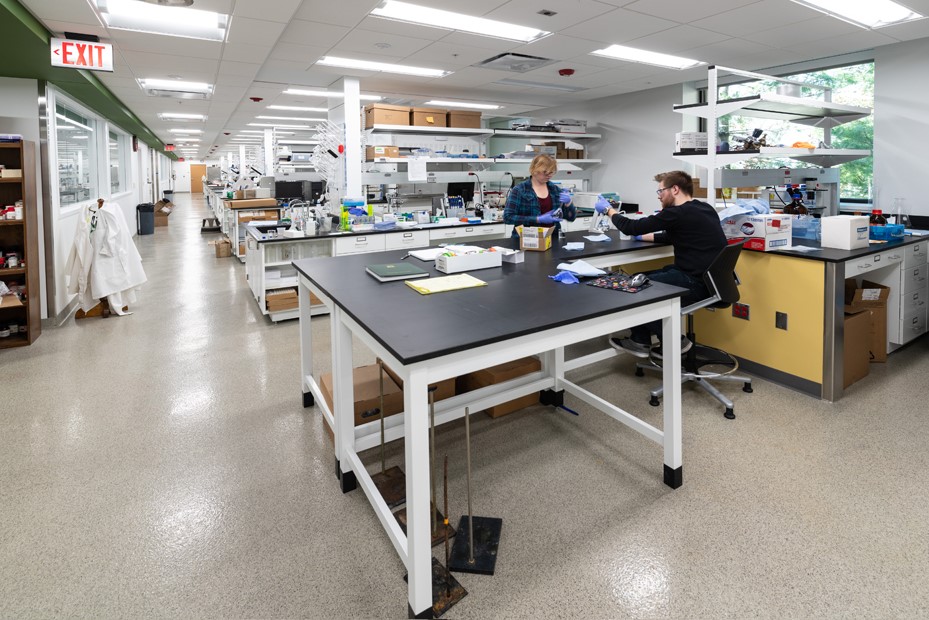

Schrenk Hall Phase 2 consisted of completely gutting and renovating the upper two floors of the building. These two floors were conceptually planned to house space for research laboratories, grad students, student interaction, and faculty offices. With an emphasis on maximizing future flexibility, the research laboratories were designed in an open layout. The majority of the casework was fixed in place for ease of laboratory service locations but some portions had movable tables. Another concept of the open plan utilized in the design allows for views into the laboratory space. This idea allowed for natural light from the exterior to get into the internal grad student areas.

During Phase 2, we installed two new air handling units (AHUs) in the penthouse, but the most intense effort involved consolidating all of the fume exhaust from the building’s 80 fume hoods into one large high-plume fan-set. We also extended new hydronic piping from the basement and created a new protected lab water system to serve lab plumbing fixtures. A 500-kilowatt (kW), diesel-driven generator system was added to provide backup of code-required emergency and life safety loads, and this infrastructure can easily accommodate future renovations while minimizing disruption to other areas of the building.

Stats and Results
Location Rolla, Missouri
Square Feet 40,000
